P108530

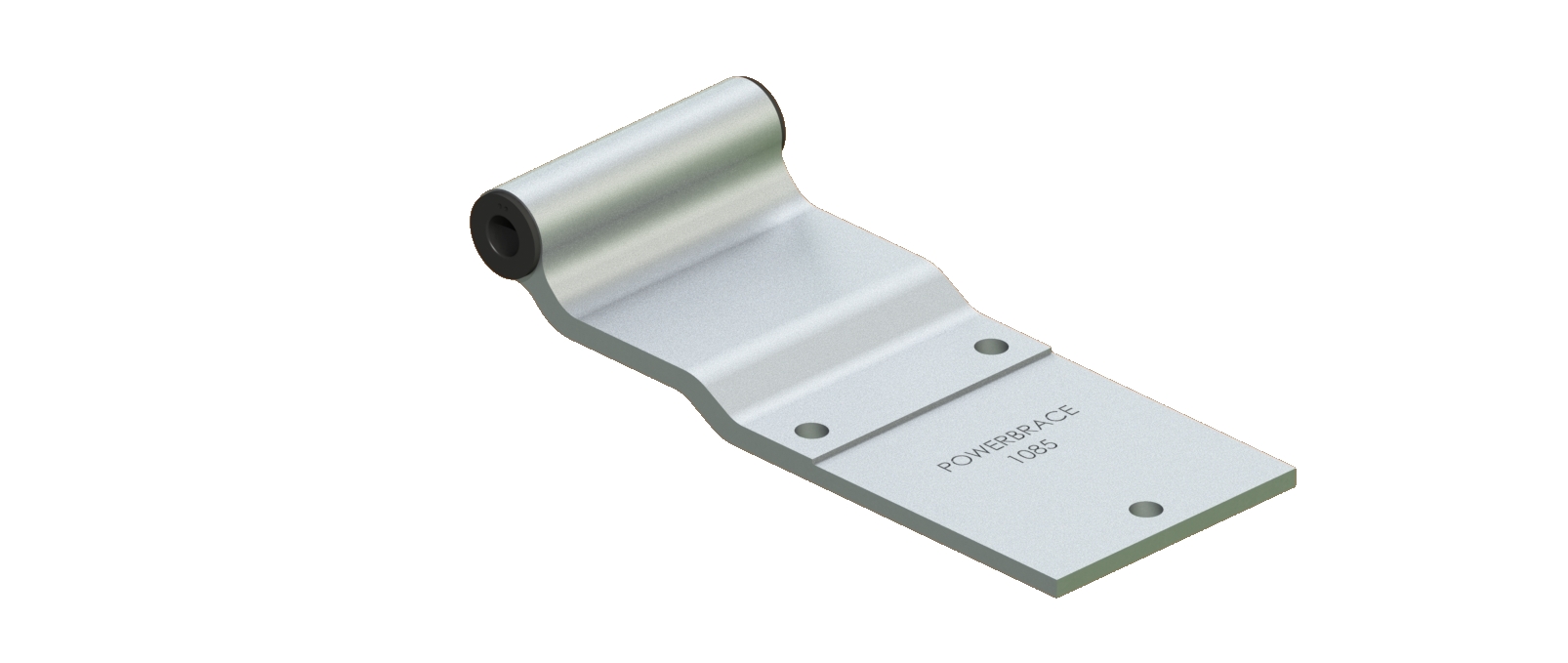

Hinge, 4" Width x 9-1/2" Length, 1-3/8" Offset, Bolt-on, Aluminum
P108530 - 3-hole, Aluminum
P108530AN - 3-hole, Aluminum Satin Anodized
P108530EP - 3-hole, Aluminum Electro-polished
P108540 - 4-hole, Aluminum
P108540AN - 4-hole, Aluminum Satin Anodized
P108540EP - 4-hole, Aluminum Electro-polished
P108550 - 5-hole, Aluminum
P108550AN - 5-hole, Aluminum Satin Anodized
P108550EP - 5-hole, Aluminum Electro-polished

Description

Hinge, 4" Width x 9-1/2" Length, 1-3/8" Offset, Bolt-on, Aluminum

Features & Benefits

Powerbrace offers a variety of choices in aluminum hinges whether for large vans, specialty trailers or truck bodies. Glide-Pro Extruded Aluminum Hinges feature patented flanged bearings that make trailer doors swing easier (reduces back strain) and keeps doors properly aligned reducing racking and seal wear. Glide-Pro Extruded Aluminum Hinges are proven to reduce wear and protect doors better than conventional hinge assemblies because the patented bearings keep metal parts from touching. No wear due to metal-to-metal contact. No frozen doors due to rusting or sticking as with conventional steel hinges. And since there is no dissimilar metal contact, our extruded aluminum hinges provide superior corrosion resistance. Aluminum offers a superior strength-to-weight ratio, especially in medium-duty applications. Aluminum offers a better looking finish than galvanized steel and it can be optionally electro-polished for a brighter finish. This option gives the look of polished stainless steel at a fraction of the cost. Aluminum maintains it appearance longer since it will not rust like steel and has a lower potential for corrosion than steel.
Part Numbers

P108530 - 3-hole, Aluminum
P108530AN - 3-hole, Aluminum Satin Anodized
P108530EP - 3-hole, Aluminum Electro-polished
P108540 - 4-hole, Aluminum
P108540AN - 4-hole, Aluminum Satin Anodized
P108540EP - 4-hole, Aluminum Electro-polished
P108550 - 5-hole, Aluminum
P108550AN - 5-hole, Aluminum Satin Anodized
P108550EP - 5-hole, Aluminum Electro-polished

Use Part With

Hinge Pin, 1/2" x 5-1/4", Drilled, (Use with 4" Hinge)
Hinge Bolt, 1/2"-13 x 5-1/2", (Use with 4" Hinge)
Nylok Nut, 1/2"-13
Hinge Butt, Bolt-on, Outside Holes 1-3/8" Offset, (Use with 4" Hinge)
Hinge Butt, Weld-on, 1-5/8" Offset, (Use with 4" Hinge)
Hinge Butt, Weld-on, 1-3/8" Offset, (Use with 4" Hinge)
Hinge Butt End, Weld-on, 5/16" x 1/2", 1-3/8" Offset (Use with 2-3/4" or 4" Hinge)
Bearing, Flanged, Keyed, (Use with Aluminum Hinge)

Details

Sizes: 4"
Styles: 3-hole 4-hole 5-hole Bolt-on
Materials: Aluminum Other
