P1088

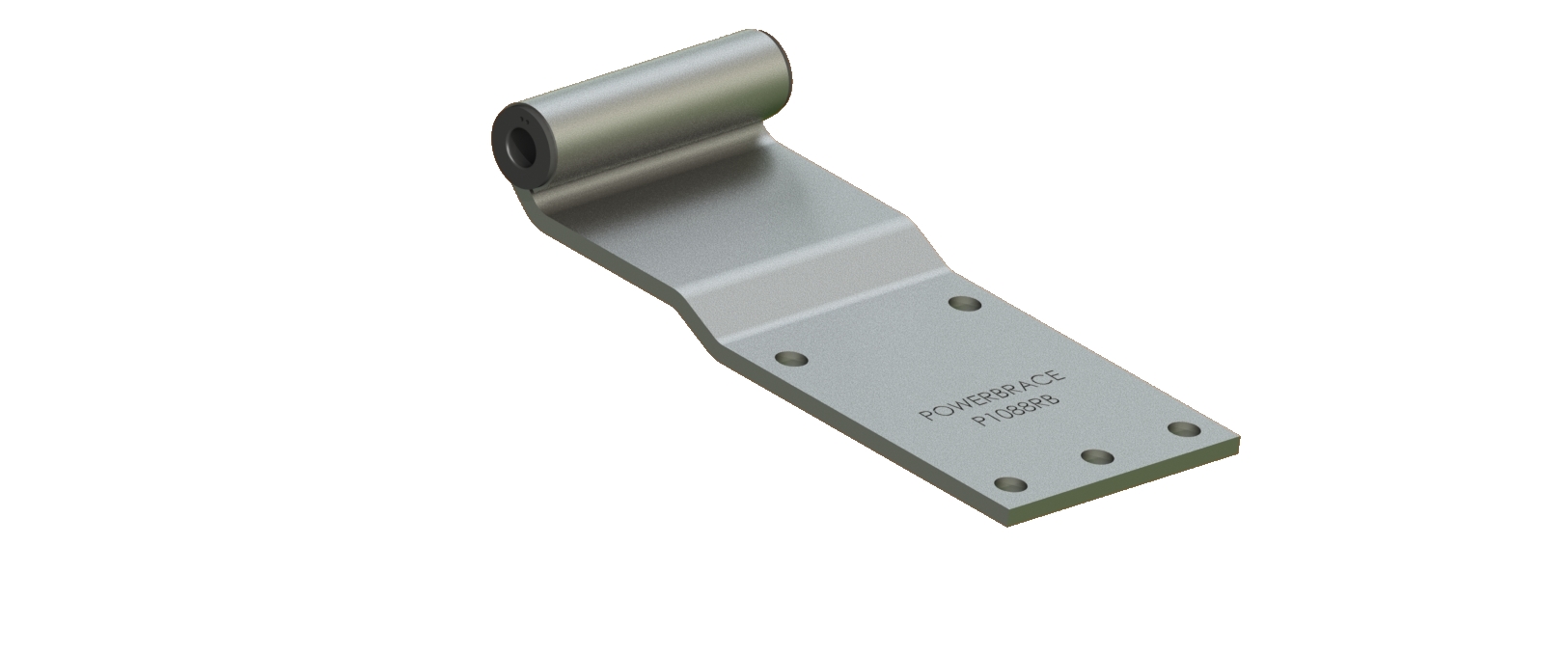

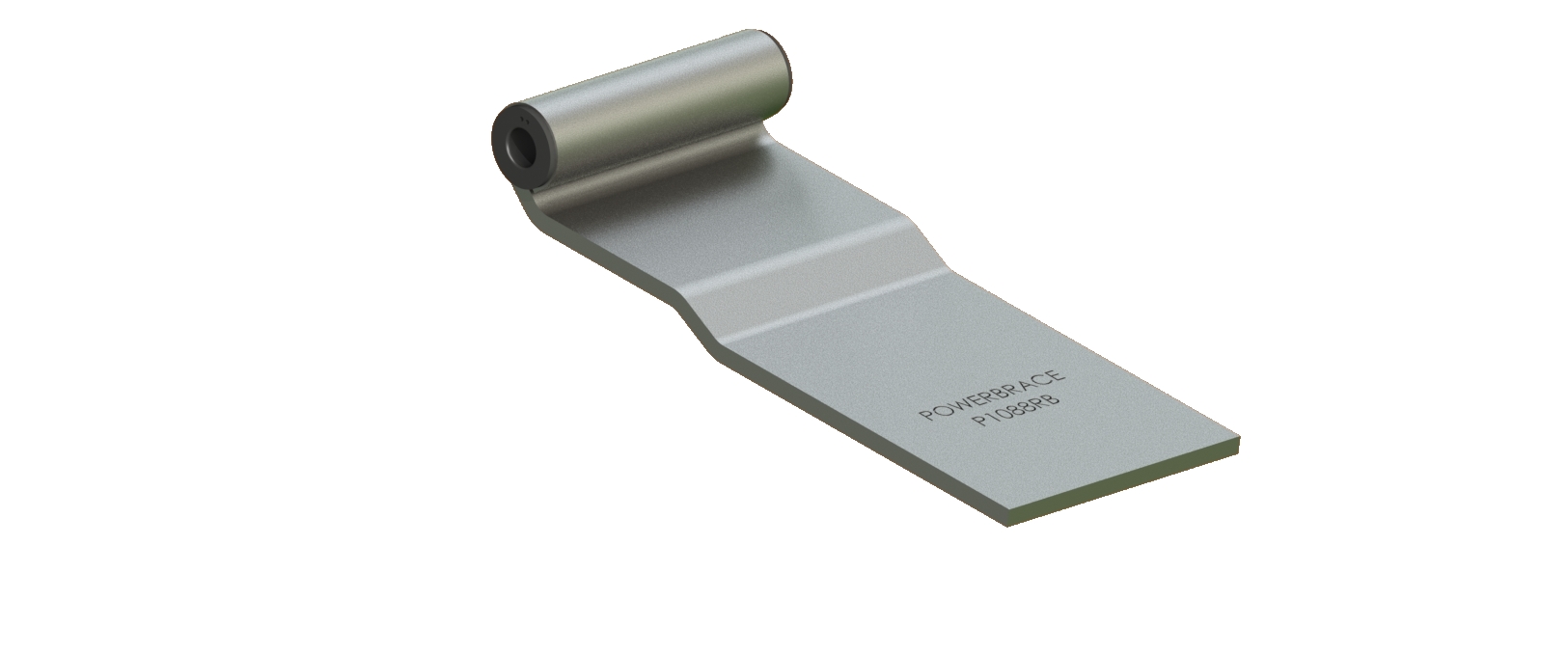

Hinge, Rolled Barrel, 4" Width x 9-1/2" Length, 1/4" Thickness, 1-3/8" Offset, Bolt-on, Steel
P108831RB - 3-hole, Plain
P108833RB - 3-hole, Steel (Zinc Plated)
P108835RB - 3-hole, HDG
P108841RB - 4-hole, Plain
P108845RB - 4-hole, HDG
P108851RB - 5-hole, Plain
P108855RB - 5-hole, HDG

Description

Hinge, Rolled Barrel, 4" Width x 9-1/2" Length, 1/4" Thickness, 1-3/8" Offset, Bolt-on, Steel

Features & Benefits

Powerbrace steel hinges can be used on heavy-duty trailers or intermodal containers. With a steel-skinned door, the use of steel hinges minimizes galvanic corrosion. Glide-Pro Steel Hinges feature patented flanged bearings that make trailer doors swing easier (reduce back strain) and keep doors properly aligned reducing racking and seal wear. Glide-Pro bearings used with steel or aluminum hinge assemblies show less wear to hinges, pins, butts and bearings. Three-hole and four-hole mounting patterns are available.
Part Numbers

P108831RB - 3-hole, Plain
P108833RB - 3-hole, Steel (Zinc Plated)
P108835RB - 3-hole, HDG
P108841RB - 4-hole, Plain
P108845RB - 4-hole, HDG
P108851RB - 5-hole, Plain
P108855RB - 5-hole, HDG

Use Part With

Hinge Pin, 1/2" x 5-1/4", Drilled, (Use with 4" Hinge)
Hinge Bolt, 1/2"-13 x 5-1/2", (Use with 4" Hinge)
Nylok Nut, 1/2"-13
Hinge Butt, Weld-on, 1-3/8" Offset, Intermodal, (Use with 4" Hinge)
Hinge Butt, Weld-on, 1-5/8" Offset, (Use with 4" Hinge)
Hinge Butt, Weld-on, 1-3/8" Offset, (Use with 4" Hinge)
Hinge Butt End, Weld-on, 5/16" x 1/2", 1-3/8" Offset (Use with 2-3/4" or 4" Hinge)
Bearing, Flanged, No Key, (Use with Steel Hinge)
Bushing, 1/2", (Use with 4" Steel Hinge)
Washer, 1/2" Hardened

Details

Sizes: 4"
Styles: 3-hole 4-hole 5-hole Bolt-on
Materials: Steel (Galv.) Steel (Plain) Steel (Zinc Plated)
