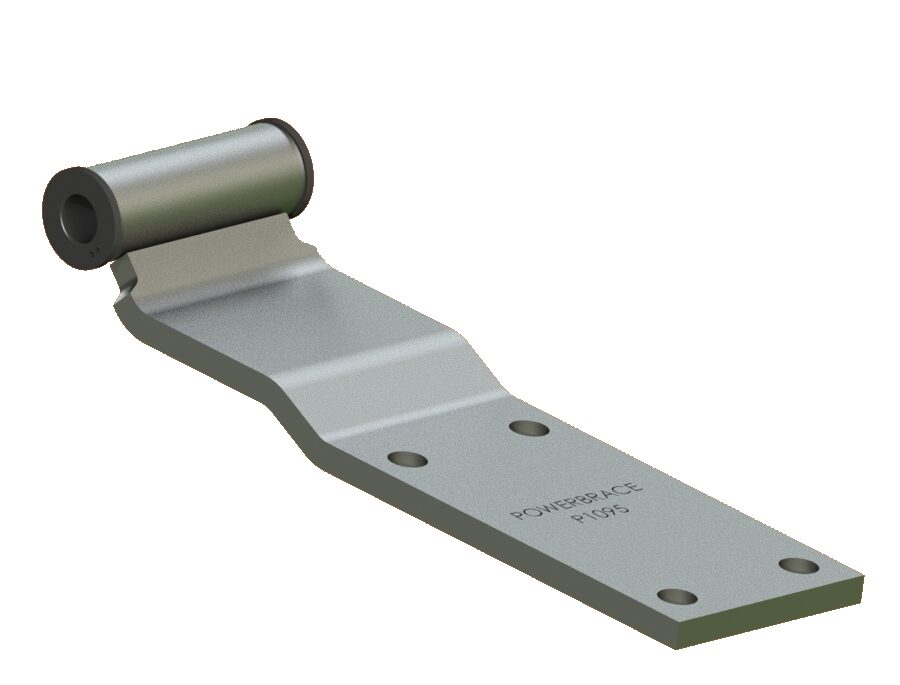

P10954

Hinge, 2-3/4" Width x 9-1/2" Length, 5/16" Thickness, 1-3/8" Offset, Bolt-on, Steel
P109541 - 4-hole, Plain
P109543 - 4-hole, Steel (Zinc Plated)
P109545 - 4-hole, HDG

Description

Hinge, 2-3/4" Width x 9-1/2" Length, 5/16" Thickness, 1-3/8" Offset, Bolt-on, Steel

Features & Benefits

Weighs less than the current 4" steel hinge. (2.39 lbs.) 30% stiffer than the conventional 4" (width), 1/2" (thick) steel hinge. Uses standard 2-3/4" hinge butts. Uses standard 1/2" pins or bolts. No need to inventory a different size pin. Same bolt hole mounting pattern as the P1086 aluminum hinge. No drill fixture changeover. Glide-Pro Steel Hinges feature patented flanged bearings that make trailer doors swing easier (reduce back strain) and keep doors properly aligned reducing racking and seal wear. Glide-Pro bearings used with steel or aluminum hinge assemblies show less wear to hinges, pins, butts and bearings.
Part Numbers

P109541 - 4-hole, Plain
P109543 - 4-hole, Steel (Zinc Plated)
P109545 - 4-hole, HDG

Use Part With

Hinge Pin, 1/2" x 4", Drilled, Zinc, (Use with 2-3/4" Hinge)
Hinge Bolt, 1/2"-13 x 4", Zinc, (Use with 2-3/4" Hinge)
Nylok Nut, 1/2"-13
Hinge Butt, Weld-on, 1-3/8" Offset, (Use with 2-3/4" Hinge)
Hinge Butt, Weld-on, 1-7/8" Offset, (Use with 2-3/4" Hinge)
Hinge Butt End, Weld-on, 5/16" x 1/2", 1-3/8" Offset (Use with 2-3/4" or 4" Hinge)
Bearing, Flanged, Keyed, (Use with Aluminum Hinge)

Details

Sizes: 2.75"
Styles: 4-hole Bolt-on
Materials: Steel (Galv.) Steel (Plain) Steel (Zinc Plated)
