1 Inch Steel/Stainless Steel Lockrods

Dual-Lobe/Zero-Torque models provide an ideal combination of benefits for the problems associated with trailer and container door securement. The dual-lobe provides “ice breaker action” applying more leverage that frees frozen (stuck) door seals regardless of door thickness.

Powerbrace Zero-Torque lockrods:

  • offer positive anti-rack control in all directions
  • are designed to cancel out the reverse-leverage action resulting from a load pushing against the door
  • provide maximum leverage to close the doors
  • provide secure closure because the more load against the door from the inside, the tighter the lockrod engages
  • allow controlled opening of the door
  • provide icebreaker action to give leverage to open frozen doors

Zero-Torque cams (with matching keepers) provide positive anti-rack control in every direction. This braces the whole rear structure and acts as an additional body member against damage by racking forces.

With Zero-Torque, a person can easily cope with excessive pressure due to shifted cargo against the door mechanism.

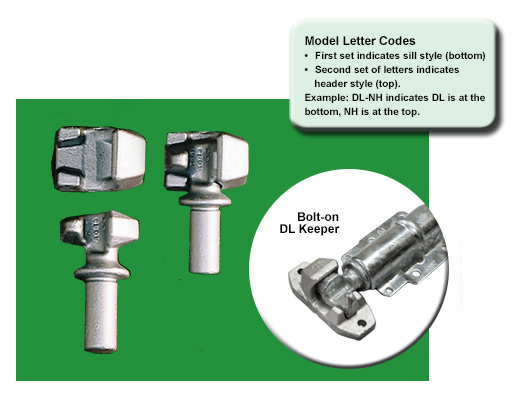

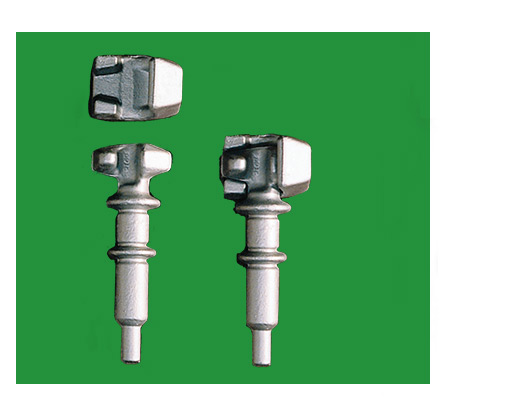

Standard Models

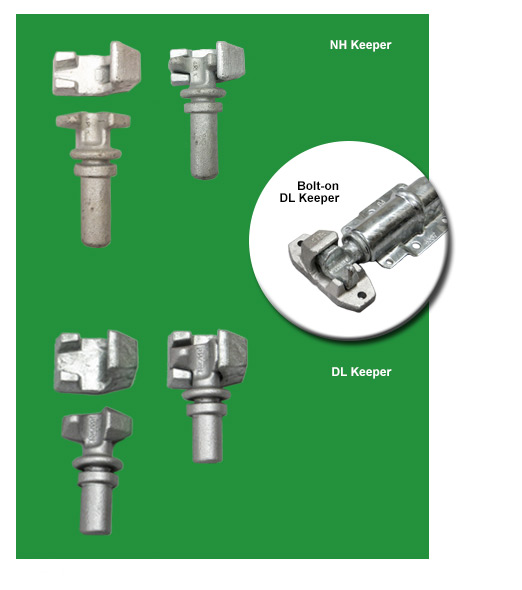

Performer Models

Performer series lockrods are the next generation of dual-lobe, zero-torque lockrods. The dual-ferrule cam design along with Powerbrace rolled-nose guide plates provides maximum anti-rack protection.

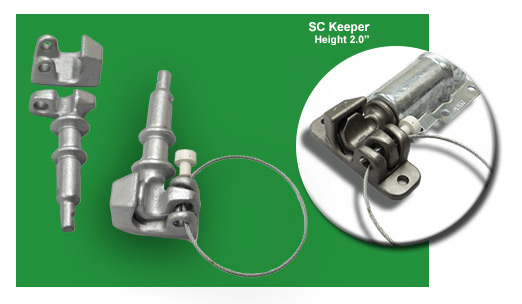

Theft Deterrent Models

This security option provides a way to secure the door seal directly at the cam and keeper, instead of at the lockrod handle.

Requires only one Secura-Cam/Keeper assembly per end-frame.

Keepers for Dual Zero Torque Lockrod Models

DL,CT,SK Keepers Plain Hot-Dip Galvanized Stainless
0" - Weld-OnP10641P10645P10647
0" - Weld-OnP10641P10645P10647
0" - Weld-on with drain holeP10648--
0" - Bolt-on-P44685-
0" - Weld-on Secura-Keeper*P41431P41435-
0" - Bolt-on Secura-Keeper*-P44675-

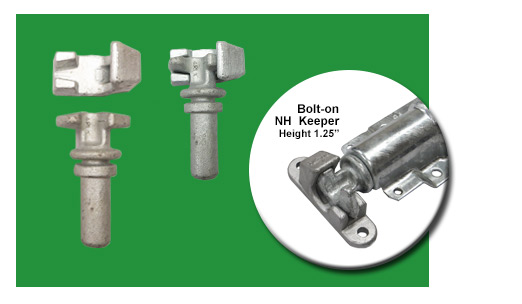

NH Keepers Plain Hot-Dip Galvanized Stainless
0" - Weld-OnP41401P41405P41407
0" - Weld-On with drain holeP41408--
0" - Bolt-on-P43745-

*For Secura Cam/Keepers security systems, SC model cam end required

Each model offers maximum reach and gather to square racked end-frames and/or warped doors and provides opening leverage to free frozen or stuck doors or overcome stiff or frozen (stuck) seals.

• Long reach cam ends allow contact with keepers 2-1/4-inches away from lockrod centerline.
• Mating sloped surfaces of cams and keepers gather and “square-up” the door panels within the door opening, while providing positive anti-rack protection.
• Both cam end tips and keeper surfaces are rounded to assure an easy, smooth entry and engagement.

Should standard models not meet your needs you can use any reach and gather model combination to meet your specific application needs.
Examples of possible alternate combinations – HV-HV, QF-SH, QF-ST, NS-SH, etc.

Keeper Height: 2.25″.

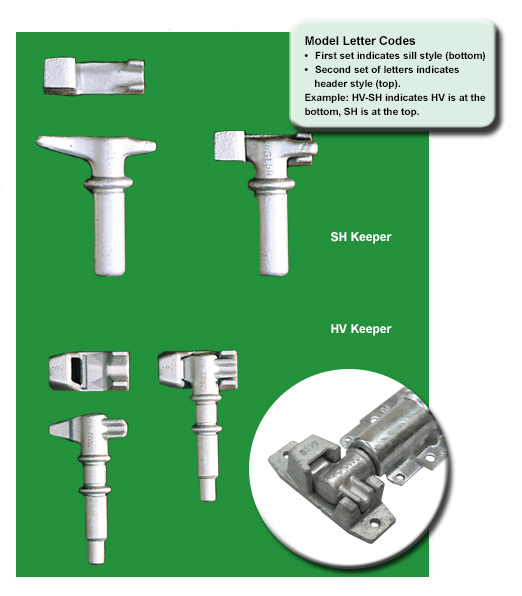

Keepers for Reach and Gather Lockrod Models

HV Keepers Plain Hot-Dip Galvanized Stainless
0" - Weld-OnP42231P42235P42237
0" - Bolt-OnP42961P24965

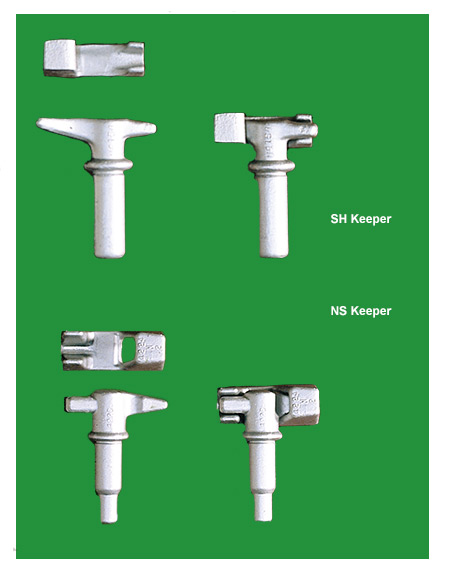

SH Keepers Plain Hot-Dip Galvanized Stainless
0" - Weld-OnP41551 LH Top/RH BotP41555 LH Top/RH BotP41557 LH Top/RH Bot
P41561 LH Top/RH BotP41565 LH Top/RH BotP41567 LH Top/RH Bot
NS Keepers Plain Hot-Dip Galvanized Stainless
0" - Weld-OnP42241P42245P42247
ST Keepers Plain Hot-Dip Galvanized Stainless
0" - Weld-OnP42291 LH Top/RH BotP42295 LH Top/RH BotP42297 LH Top/RH Bot
P42301 LH Top/RH BotP42305 LH Top/RH BotP42307 LH Top/RH Bot
QF Keepers Plain Hot-Dip Galvanized Stainless
0" - Weld-OnP42371P42375P42377

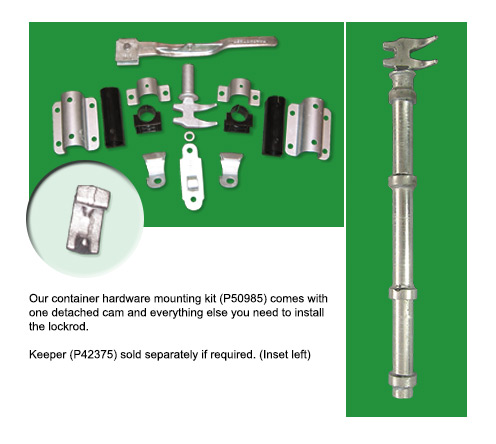

Eliminate the hassle of fabricating lockrods from components.

  • All Intermodel components are exact replacements for the component they replace.
  • Save valuable time and money utilizing the Powerbrace factory assembled lockrod option.
  • Universal design works as LH or RH depending on handle placement, allowing for the repair of virtually any container.
  • Comes in lengths for 8’6″ (lockrod P152901) and 9’6″ (lockrod P152865) containers.
intermodal-model-P50985-kit

Stainless Steel

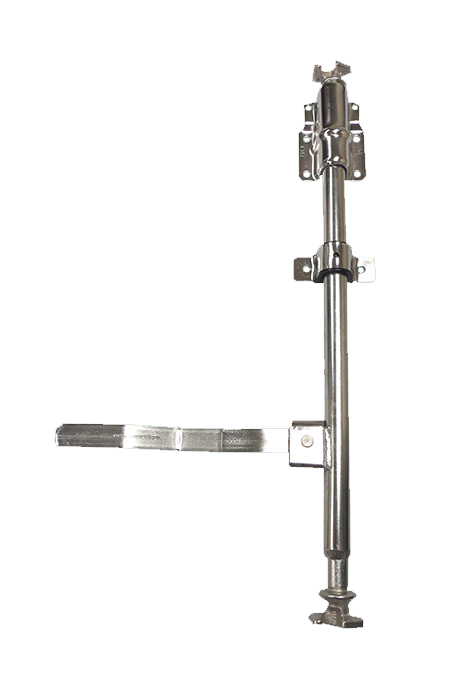

NH-NH Stainless Steel Lockrod
For keepers, refer to the keeper table in Dual-Lobe/Zero-Torque Models section.
NH-NH Stainless Steel Lockrod For keepers, refer to the keeper table in Dual-Lobe/Zero-Torque Models section.

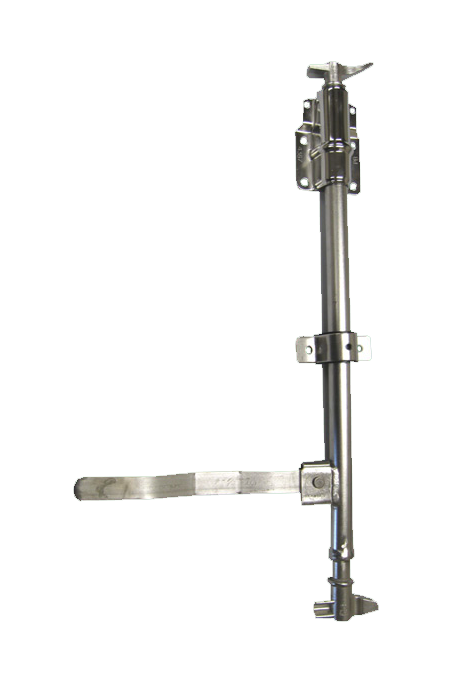

HV-SH Stainless Steel Lockrod
For keepers, refer to the keeper table at the end of the Reach/Gather lockrod section.

Should the standard HV-SH model not meet your needs you can also use the following model combinations: HV-HV, NS-NS, SH-SH.
HV-SH Stainless Steel Lockrod For keepers, refer to the keeper table at the end of the Reach/Gather lockrod section. Should the standard HV-SH model not meet your needs you can also use the following model combinations: HV-HV, NS-NS, SH-SH.
