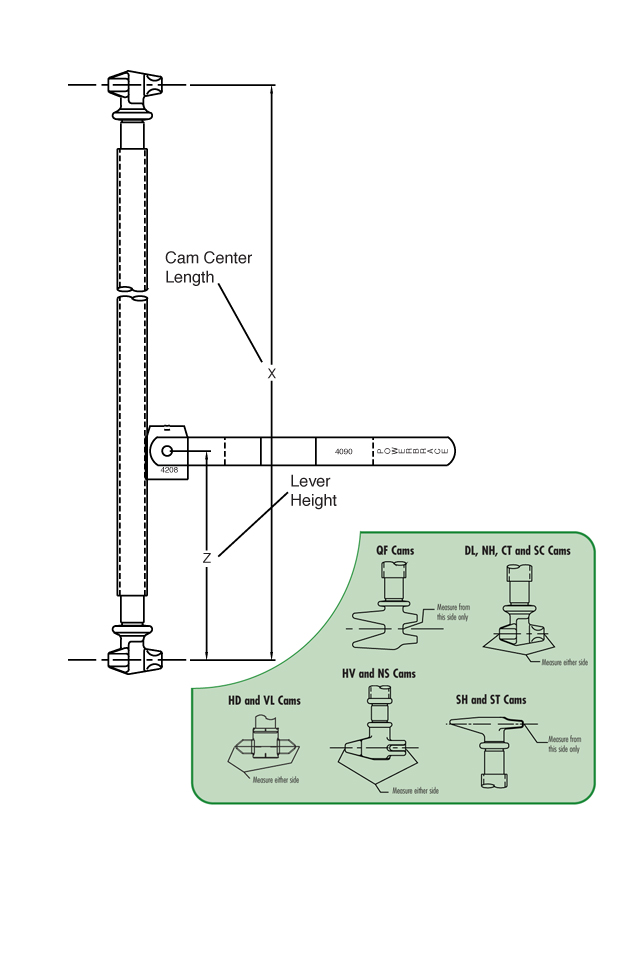

Lockrod length is measured as the dimension between the centerline of the cams (X). Lever (handle) location is measured as the dimension from the centerline of bottom cam to centerline of the lever (Z).
![how-to-measure-lockrod how to measure a lockrod](https://powerbrace.com/wp-content/uploads/2022/04/how-to-measure-lockrod.jpg)
Lockrod length is measured as the dimension between the centerline of the cams (X). Lever (handle) location is measured as the dimension from the centerline of bottom cam to centerline of the lever (Z).
